Description

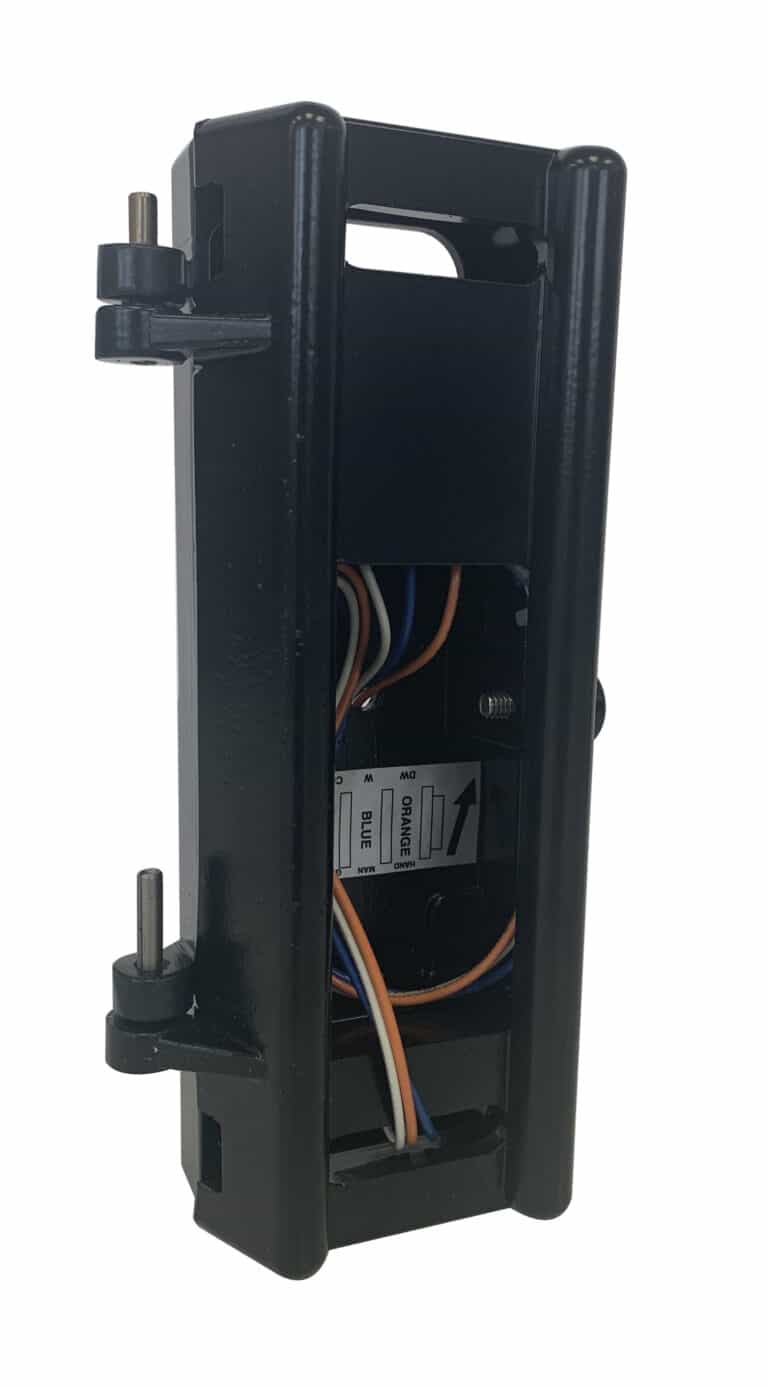

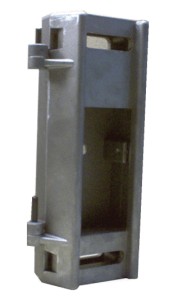

The Clamshell is a quick and convenient way to mount a 16-inch pedestrian maintenance housing. With one half installed pole and the other half installed on the housing, the dual mount pieces easily slide together creating a single, secure mount that allows easy maintenance access and quick removal and remounting in the field.

Benefits

  • Made of cast aluminum alloy.
  • Quick and easy to install.
  • Multiple mounting options to meet various requirements.
  • Tamper Resistant.
  • Available in multiple colors.

Standard Features

  • Design allows for mounting to left or right side of maintenance head.
  • Neoprene gasket used around access door and wire entrance hole on back side of mount to ensure weather tight seal.
  • 3 position double row terminal block a allows Field wires to terminate in Clamshell.
  • 24” Wire leads provided to connect Clamshell terminal block to Ped terminal block.

Options

  • 12 position terminal block version available.

General Specifications

  • Dimensions: 11” H x 5” W x 2.5” D
  • Material: Cast Aluminum Alloy
  • Finish: Powder Coat
  • Colors: Federal Yellow, West Coast Green, Black (Contact MoboTrex concerning other colors)
  • Latching System: Flathead 3/16” hex socket bolt
  • Mounting: Band, Through-Bolt, or Lag Screws
  • Shipping Weight: 4.5 lbs
