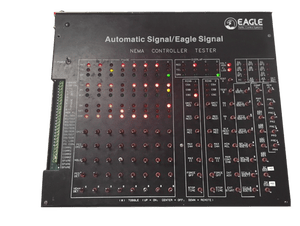

JBS700 NEMA TS-1 Tester

Features

  • Standard A,B,C NEMA connectors and functions.
  • All components PC board mounted.
  • High efficiency LEDs for longer life.
  • All harnesses removable.
  • Eight (8) remote detector inputs, logic common, and +24 VDC via contact block.
  • EPAC “D” connector with input and output functions “D” connector remote inputs via contact block.

Specificiations

Dimensions:
2″H x 15″W x 12 1/2″D
(50.8 mm H x 381 mm W x 63.5 mm D)

Order Numbers:
JBS700P002 – Tester unit
JBS700P004 – Tester unit in luggage style case



Download Datasheet for JBS700 NEMA TS-1 Tester
