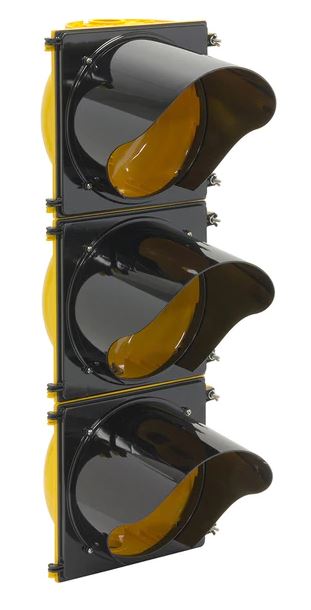

SG Polycarbonate Signals are the successor to the LFE and Automatic Signal product lines. The SG series is our heavy-duty signal line, with an increased wall thickness for maximum strength while the polycarbonate material minimizes the signal weight. The SG series polycarbonate signals are injection molded of ultraviolet-stabilized, pre-colored opaque polycarbonate that are free from peeling and corrosion. SG signals are built to meet or exceed ITE specifications for traffic signals. The signals are available in numerous configurations and colors, from single sections up to five sections. SG Polycarbonate Signals are designed to be virtually maintenance free.
- Housing – One piece unit with serrations in 5º increments at each end. Each housing has provisions for mounting two terminal blocks and attaching backplates. Housings may be fastened together to make multi-section signals. The 8” and 12” housings can be intermixed to form combination signals. SG polycarbonate wall thickness = .125”
- Door – One piece polycarbonate unit equipped with stainless steel hinge pins. Stainless steel captive eyebolts and wingnuts are used to hold the door against the housing.
- Visor – The removable twist-on visor is secured to the door with stainless steel hardware. Cap, tunnel, and full circle visors are available.
- Positive Positioning – Positive positioning and locking is achieved through the use of serrated brackets, mast arm, or span wire fittings.
- Terminal Block – All terminal blocks are composed of a sturdy polycarbonate weather resistant casing and stainless steel hardware. Terminal block is standardly installed in the yellow section of signal (second from top).
- Hardware – Stainless steel material inside and outside.
