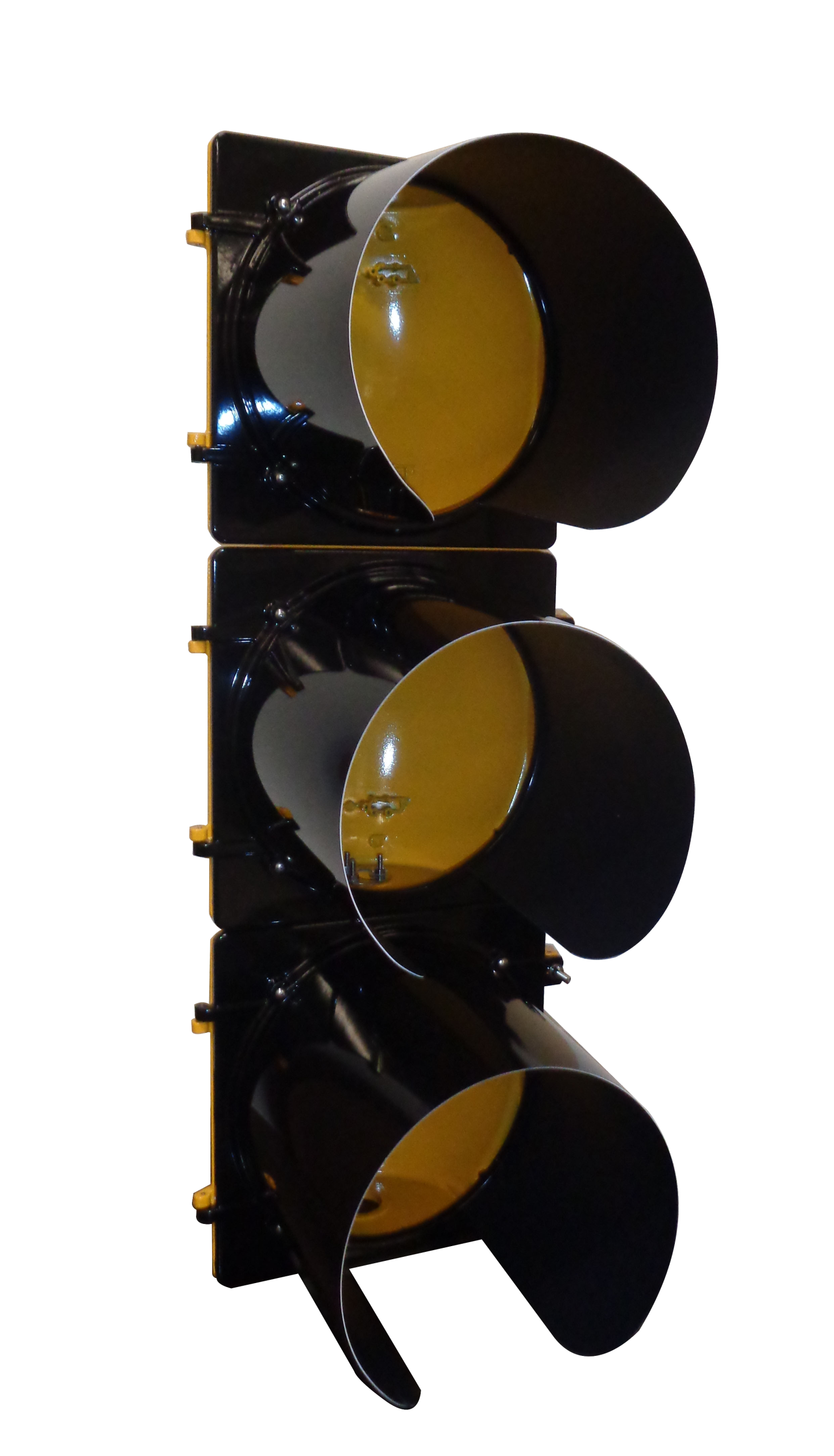

SG Aluminum Signals are the successor to the LFE and Automatic Signal product lines. The SG heavy-duty signal series is the strongest signal available, with the aluminum housings holding up in all weather conditions. SG Aluminum Signals are die-cast from grade 5052-H32 aluminum. SG signals are built to meet or exceed ITE specifications for traffic signals. The signals are available in numerous configurations and colors, from single sections up to five sections.
- Housing – One piece die-cast unit with serrations in 5° increments at each end. Each housing has provisions for mounting two terminal blocks and attaching backplates. Housings may be fastened together to make multi-section signals. SG aluminum wall thickness = .125″
- Door – One piece die-cast aluminum unit equipped with stainless steel hinge pins. Two stainless steel captive eyebolts and wing nuts permit easy access to the inside of the housing.
- Visor – One piece formed aluminum unit. The removable twist-on visor is secured to the door with stainless steel hardware. Cap, tunnel, and full circle visors are available.
- Positive Positioning – Positive positioning and locking is achieved through the use of serrated brackets, mast arm, or span wire fittings.
- Hardware – Stainless steel material inside and outside.
- Coating – Powder coated exterior and edges are standard. Powder coated interiors are available as an option.
